In the first months after I bought my TM-D710 the original fan starts making a screaming noise when I put on the radio. After about one minute it seems like it gain enough traction and became a bit less noisy, and only turns on when I transmit. Since I use my TM-D710 in my home office primarily , it still is too loud.

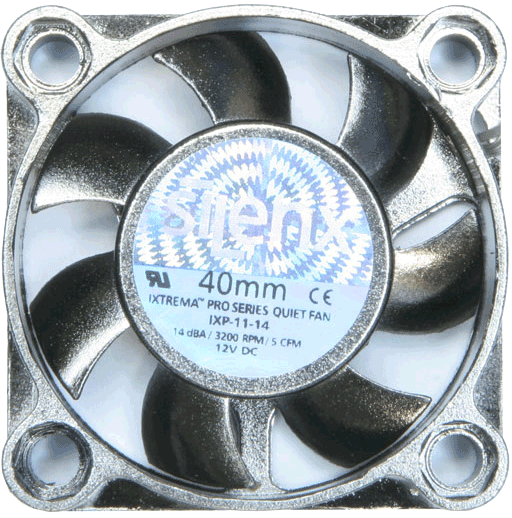

Recently I subscribed to a Yahoogroup for the Kenwood TM-D710/V71. One of the threads that popped in my mailbox was one about changing the stock fan for a more silent one. I ordered the SilenX Ixtrema IXP-11-14 from Freezing Hardware for a whopping 14 euro’s.
The old fan was out in a breeze, the new one in place in a minute. Only thing I had to do was change the original connector. Since all three wires of the SilenX are silver, it was a bit of gamble which one to pick. When I connected the radio for a test run I came to the conclusion I used the wrong wires. No sound of a running fan at all. Not even when I was transmitting. Fortunately I did put my hand in front of the fan before rewiring it and noticed that it did suck air in. When I took a good look, it turns out the fan was running, but without noticeable sound! Unbelievable what a difference! Now I can listen to the local repeater at the lowest volume without a screaming fan every time APRS push out a packet.
I also use my TM-D710 in the car from time to time. Of course the fan noise is not a big problem in the car where other noises are more dominant. But less noise in the car isn’t a bad thing at all.
Impression of the modification:
I’m assuming this voids the warranty if done yourself though right?
Jake, I guess it does. Probably I should noticed that in the post somewhere 😉 Thanks for pointing this out!
Loving the feature set of the radio but the fan really destroys it for me. If I was mobile it probably wouldn’t be a big deal like you say but in a house / shack…. its crazy loud. Trying to decide if I should keep or not but the fan is the number one con. :/
I know Jake, had the same experience. But this swap fixes everything. Total cool rig this way.
I should ask.. was that a standard computer fan ? a 40x10mm cpu style fan ? (My fan on rig says 40×12 but I’d assume thats the depth of the fan and a 40×10 should work.)
Jake, measurements of my fan are: 40 x 40 x 10 mm. I used this replacement fan: http://www.silenx.com/quiet.fans.asp?sku=ixp-11-14. It’s practically silent now.
Thank you for the info! Gonna look into replacing mine.
Great Jake! Let me know if you succeed!
Many thanks, I did this mod myself except I swapped the cable over from the old fan.
Dank. Ik heb er twee besteld.
Put a 100 ohm resistor across the two terminals at the fan’s connector. That will lower the voltage and quiet the fan up nicely.
